pre-tension: | 1.5~3.0% | type: | PU round belt |
---|---|---|---|
Length: | 30 meter /rolls | Hardness: | 90 shore A |
color: | Green | diameter: | 2mm-20mm |
লক্ষণীয় করা: | pu round belt,green round belt |

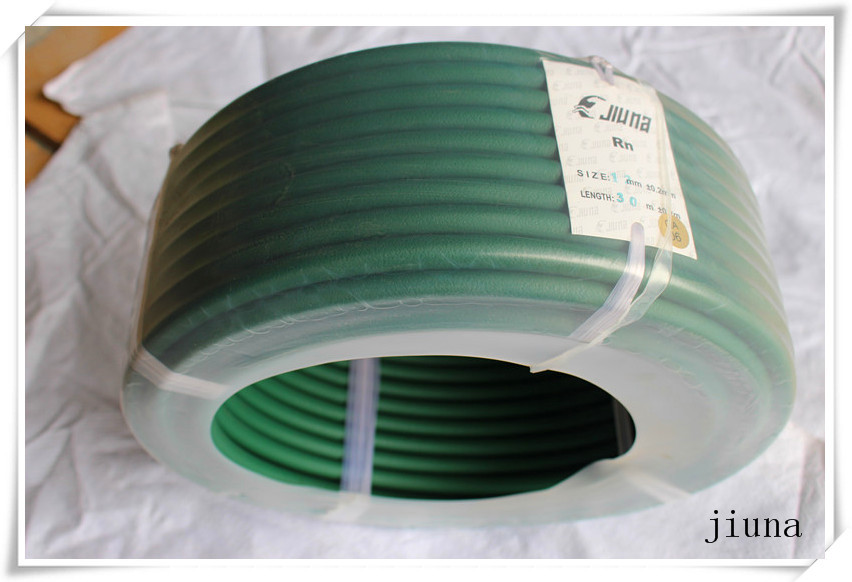

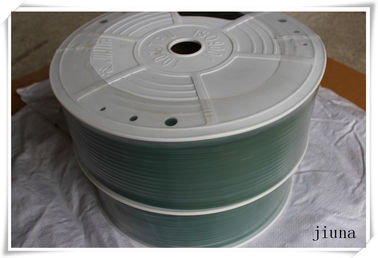

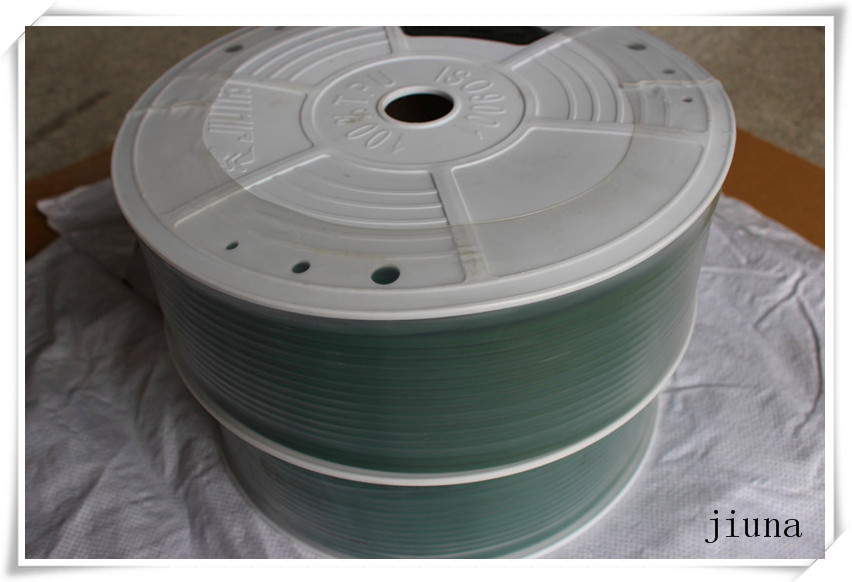

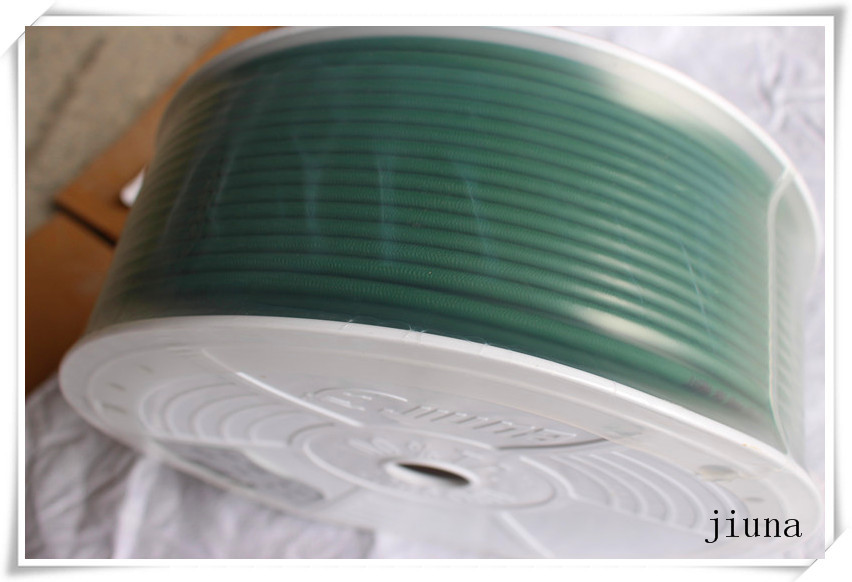

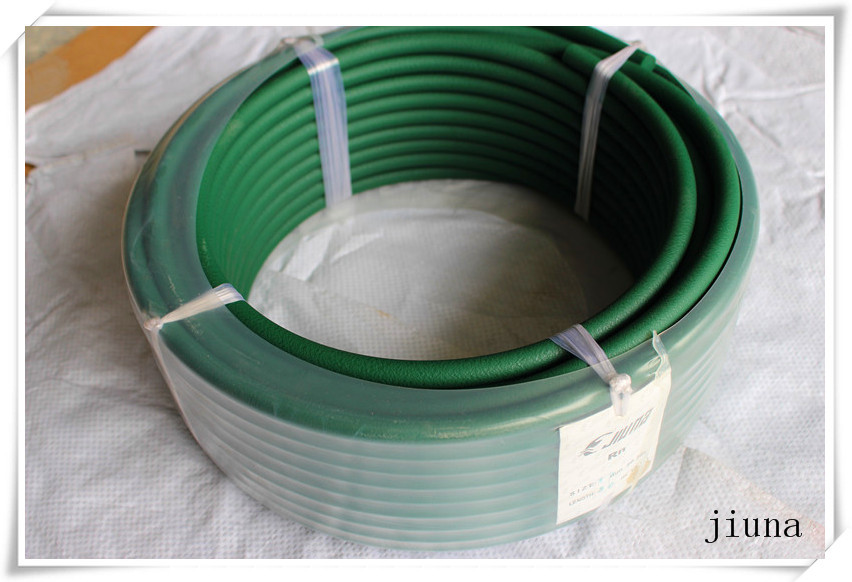

Polyurethane round belt are available with orange color smooth surface and green color rough surfaces
and reinforced nylon, fibers, Kevlar and steel card .It also can jointed belt to o-ring. The diameter range
from 2mm-20mm,we have professional worker can help you to jointed belt.
In addition, we also can supply a set of the connecting tools &accessories to you, it’s include to clamp, the electric ion and knife, connecting methods is butt joint and overlap joint.
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .special color can be produce by custom-made ,Yellow and blue pearl round belt applied to skipping rope ,ect, sports leisure fitness industrial .
Service commitment:
“Quality for keeping going ,Credit to win the world”
Items NO.Φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
DIA(mm) |
In |
mm |
% |
Kg |
Lbs |
Shore( A) |
Length of rolled |
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
95 |
400 |
2.5mm |
0.87 |
22 |
1.5-3% |
0.4 |
0.9 |
95 |
400 |
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
3.5mm |
1.18 |
30 |
1.5-3% |
0.95 |
2.1 |
90 |
400 |
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
90 |
200 |
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
90 |
100 |
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
90 |
100 |
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
90 |
100 |
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
90 |
100 |
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
90 |
50 |
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
90 |
50 |
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
90 |
30 |
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
90 |
30 |
