পণ্যের বিবরণ:
প্রদান:
|
material: | PU | longth: | 300m/roll 200m/roll 100m/roll 50m/ roll 30m/ roll |
---|---|---|---|
hardness: | 85A-90A | tensile rate: | 0.3kg-31.3kg |
stretching rate: | 1.5%-3% | Main function: | Drive,transmission, |
Tensile Strength: | 55N/mm2 | ||
লক্ষণীয় করা: | pu extruded belt,green round belt |

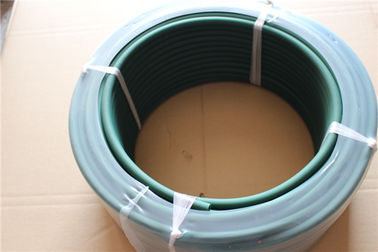

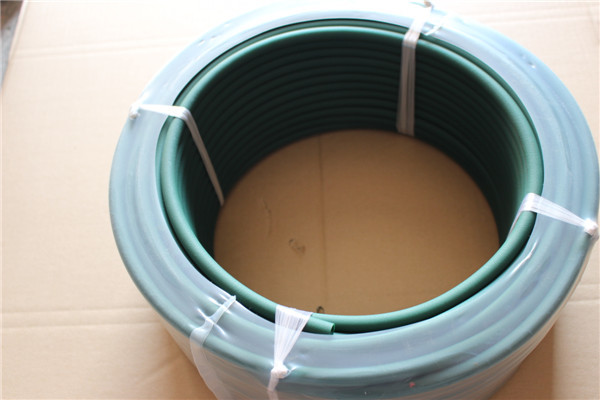

Tensile Strength Polyurethane Round Belt / PU Round Belt for lndustrial
Detailed Product Description:
Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
a: diameter: 2mm--30mm
b: surface: vivid color with glossy surface; neat granule spread fairly for rough surface type.
b: Wildly used in ceramic/marble industry, with good wearing resi
tance feature
Our company specializing in the production of PU round belt,V belt,non-slip belt,wire clip,clip wire core,PU guide, stop,package edge,skirt,scraping gum,rubber roller,wheel and all kinds of non-standard special polyurethane products.TPU proudcts characteristic and main performance are: easy adhesion,good abrasion resistance,tear resistance,bending strength,tensile strength and breaking elongation,heat-resistant moderate (-30 ℃~80℃ ) ,hardness shaw (70a~98a). Smooth round belt, V belt surface finish is good, bright color with rough surface. Uniform praticles,comfortable feel.cpu pouring product characteristics and main performance are: wear-resisting.oil,acid and alkali resistance,solvent resistance,ozone resistance,aging resistance,environmental protection,non-toxic,the main products are rubber roller plastic bags,plastic core package iron roller,printing and dyeing,etc.,and can undertake various non-standard parts processing,customized non-standard products can be according to the drawing,plastic,iron core production in a body. TPU products are mainly used in textile,
tobacco,packaging,printing,machinery,electronics,glass,ceramics and other machinery and equipment industry,especially suitable for ceramic industry of the spool, polishing line, such as the main plays a driving, conveying,sealing and shock absorption,decoration and so on.
.
Items NO.Φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
DIA(mm) |
In |
mm |
% |
Kg |
Lbs |
Shore( A) |
Length of rolled |
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
95 |
400 |
2.5mm |
0.87 |
22 |
1.5-3% |
0.4 |
0.9 |
95 |
400 |
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
3.5mm |
1.18 |
30 |
1.5-3% |
0.95 |
2.1 |
90 |
400 |
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
90 |
200 |
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
90 |
100 |
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
90 |
100 |
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
90 |
100 |
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
90 |
100 |
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
90 |
50 |
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
90 |
50 |
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
90 |
30 |
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
90 |
30 |
