Green Polyurethane Round Belt / 8mm pu conveyor belt for driving

চীন Wuxi Jiunai Polyurethane Products Co., Ltd সার্টিফিকেশন
চীন Wuxi Jiunai Polyurethane Products Co., Ltd সার্টিফিকেশন
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

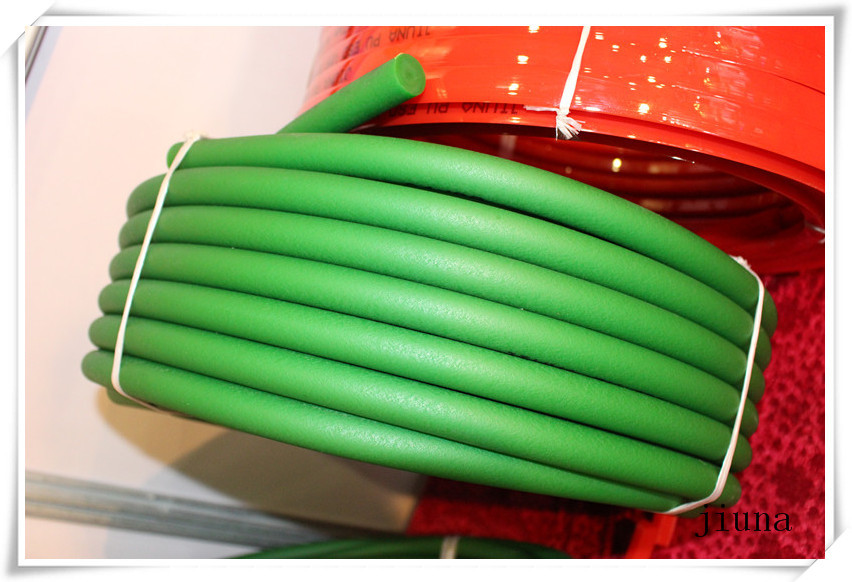

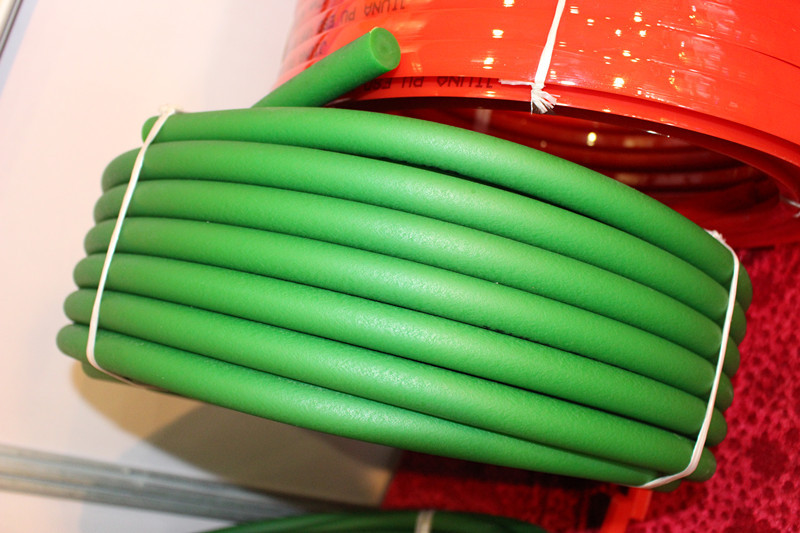

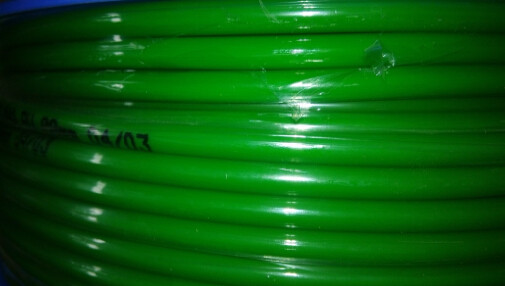

Green Polyurethane Round Belt / 8mm pu conveyor belt for driving

large.img.alt
small.img.alt small.img.alt small.img.alt

বড় ইমেজ :  Green Polyurethane Round Belt / 8mm pu conveyor belt for driving

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: jiuna
সাক্ষ্যদান: ROHS
Model Number: Diameter 2mm-20mm
প্রদান:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
বিস্তারিত পণ্যের বর্ণনা
surface: rough color: green
diameter: 8mm material: PU
tolerance: ±0.2-0.5mm
লক্ষণীয় করা:

পু রাউন্ড বেল্ট

,

সবুজ বৃত্তাকার বেল্ট

,

8 মিমি পলিউরেথেন রাউন্ড বেল্ট

Green Polyurethane Round Belt / 8mm pu conveyor belt for driving



Items NO.Φ Least radius of gyration Stretching rate Maximum tensile rate Hardness Length of rolled
DIA(mm) In mm % Kg Lbs Shore( A) Length of rolled
2mm 0.79 20 1.5-3% 0.3 0.7 95 400
2.5mm 0.87 23 1.5-3% 0.4 0.9 95 400
3mm 0.98 26 1.5-3% 0.7 1.6 85 400
3.5mm 1.18 31 1.5-3% 0.95 2.1 90 400
4mm 1.38 35 1.5-3% 1.2 2.7 90 200
5mm 1.57 40 1.5-3% 2.0 4.3 90 100
6mm 1.97 51 1.5-3% 3.2 7.0 90 100
7mm 2.17 55 1.5-3% 4.1 9.0 90 100
8mm 2.56 65 1.5-3% 5.0 11.0 90 100
9mm 2.95 75 1.5-3% 6.8 15.0 90 50
10mm 2.95 75 1.5-3% 7.7 17.0 90 50
12mm 3.94 100 1.5-3% 12.2 27.0 90 30
15mm 4.72 120 1.5-3% 17.7 39.0 90 30
18mm 5.71 145 1.5-3% 25.4 56.0 90 30
20mm 6.30 160 1.5-3% 31.3 69.0 90 30


(1) Thermoplastic polyurethane material, easy to be melted jointed
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature enviroment -35°C - +75°C
(4) hardness range 45A - 90A(Shore)
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common
plastic and rubber.
1.24 hours technical support by email
2.Professional After-sales service
3. ISO9001:2000 and TS16949 certificated.
4. OEM available.
5. More than ten years of sales and manufacture experience
6.100% test for air pressure and inspection for product appearance before shipment.
7. Long lifespan, competitive price.
8. Good payment term.
9. Fast delivery.
10.Thread Standard: BSPP, BSPT, NPT, METRIC etc. Our products are exported to more than 30 countries in the whole world.
11. Our products are showed at international fair, such as Germany, Italy, America, Brazil, Dubai, Russia, Shanghai China fair etc each year.
12. Location advantage: Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai, convenient for customers to visit our factory



Service commitment:
“ Quality for keeping going ,Credit to win the world”
