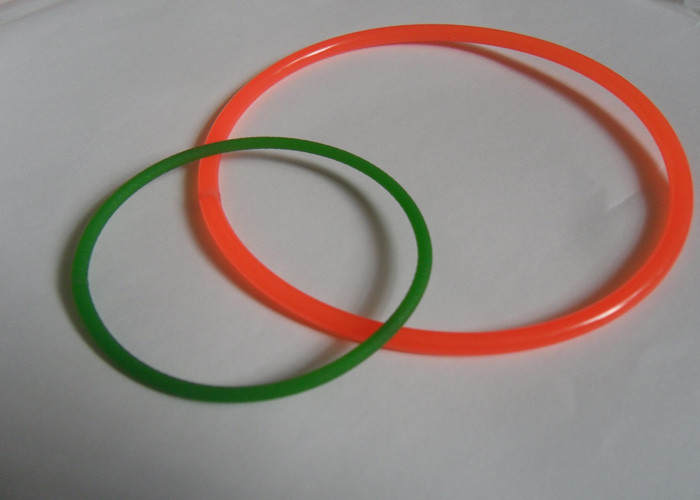

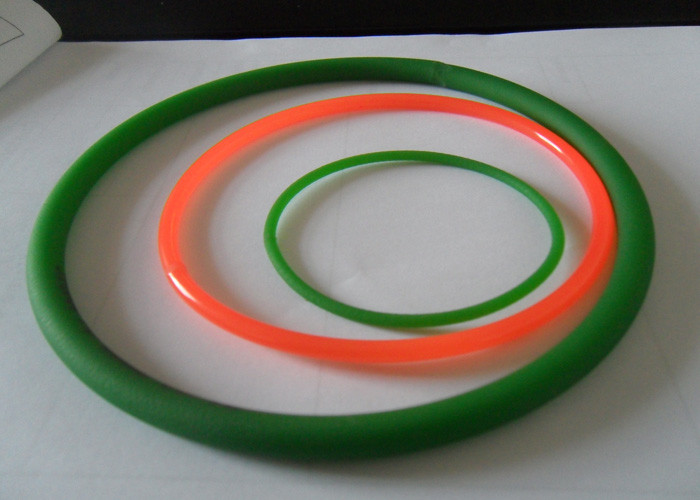

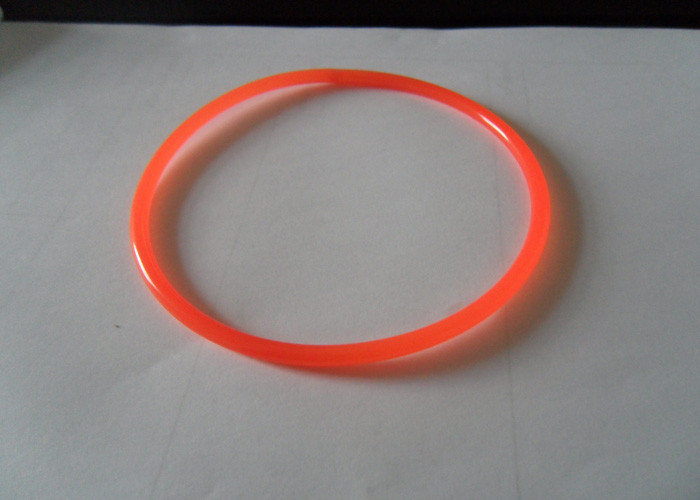

Welding Polyurethane Round Belt

Welding Polyurethane Round Belt
Welding Polyurethane Round Belt Welding Polyurethane Round Belt Welding Polyurethane Round Belt Welding Polyurethane Round Belt

বড় ইমেজ :  Welding Polyurethane Round Belt

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Jiuna
সাক্ষ্যদান: ROHS
Model Number: Diameter 2mm~20mm
প্রদান:
Minimum Order Quantity: 1000 piece
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 6000 piece per Month
বিস্তারিত পণ্যের বর্ণনা
material: PU hardness: 85 shore A ~90 shore A
color: orange or green Length: as your request
type: PU round belt surface: rough or smooth
লক্ষণীয় করা:

pu round belt

,

pu extruded belt

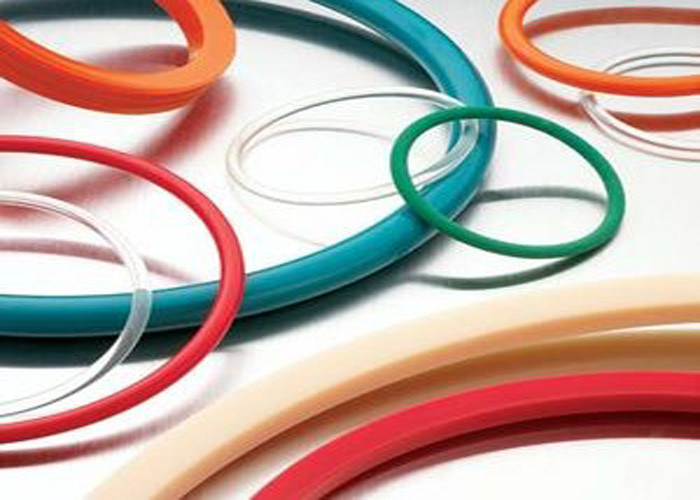

Polyurethane round belt and welding PU Sealing O-ring

Welding PU Sealing O-ring introduction:

We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile.  it can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is butt joint welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .



Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed.
(2)Reinforced by Polyester Cord or Steel Cord.
(3)Temperature range -35 celsius degree - 80celsius degree.
(4)Shore A hardness range 80A - 98A.
(5)With excellent resistance to flex, abrasion resistance, easy jointed and Other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
(7)V-belt Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance.
(8)Pentagon Belt, Septangular Belt, Suppergrip belt
Specifications include A, B, C three type.
(9)Hexagonal Belt
Specifications include C
(10)Parallel Belt
Including A, B two specifications
Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging,

printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper

and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission

 lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type,

 pentagonal belt normally used in the production line's corner.

Sealing O-ring specification as below sheet ,length is according to your request .



Items No. φ

least radius of gyration

stretch rate

Maximum tensile rate

Hardness

length of rolled

DIA

(mm)

In

mm

Stretching rate

Kg

Lbs

Hardness

(A)

Roll

(m)

2mm

0.79

20

1.5-3%

0.3

0.7

90

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

85

200

5mm

1.57

40

1.5-3%

2.0

4.3

85

100

6mm

1.97

50

1.5-3%

3.2

7.0

85

100

7mm

2.17

55

1.5-3%

4.1

9.0

85

100

8mm

2.56

65

1.5-3%

5.0

11.0

85

100

9mm

2.95

75

1.5-3%

6.8

15.0

85

50

10mm

2.95

75

1.5-3%

7.7

17.0

85

50

12mm

3.94

100

1.5-3%

12.2

27.0

85

30

15mm

4.72

120

1.5-3%

17.7

39.0

85

30



Welding Polyurethane Round Belt 0

Welding Polyurethane Round Belt 1Welding Polyurethane Round Belt 2





Service commitment:

“Quality for keeping going ,Credit to win the world”
