পণ্যের বিবরণ:
প্রদান:
|
প্রধান ফাংশন: | ট্রান্সমিশন বেল্ট | কঠোরতা: | 90 তীরে A |
---|---|---|---|
উপাদান: | PU | দৈর্ঘ্য: | 30 মিটার / রোলস |
পরীক্ষা পদ্ধতি: | ডিআইএন স্ট্যান্ডার্ড | টাইপ: | ভি-বেল্ট |
লক্ষণীয় করা: | সবুজ বৃত্তাকার বেল্ট,পু এক্সট্রুডেড বেল্ট,মসৃণ পু ফ্ল্যাট ট্রান্সমিশন বেল্ট |

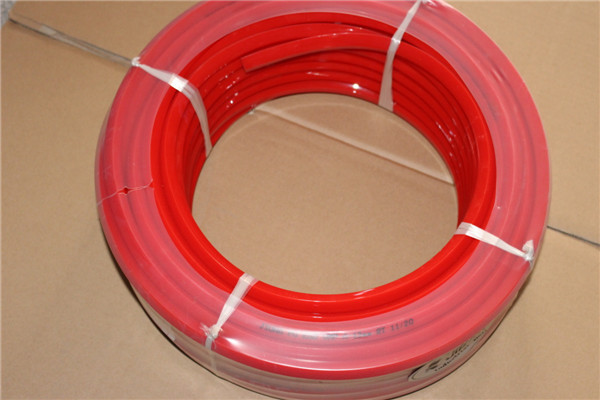

PU Flat Transmission Belt Low Compression Set industry machines
PU V-Belt Application :
Widely used in textile
printing and packing machine
paper processing
electronic
Product Technical Parameters :
Specification |
X(mm) |
H(mm) |
Z(mm) |
M/rolls |
reinforced |
arabesquitic |
A |
13 |
8 |
3.5 |
30 |
· |
· |
B |
17 |
11 |
3.5 |
30 |
· |
· |
C |
22 |
14 |
3.5 |
30 |
· |
· |
D |
32 |
19 |
3.5 |
30 |
· |
· |
M |
8 |
4 |
|
50 |
|
|
Z |
10 |
5 |
3.5 |
50 |
· |
· |
Characteristics for PU V-section belt
excellent elasticity and damping characteristics
High tensile strength
With smooth surface v-belts
Color :red ,white
Hardness 90 shore A
Available with or without reinforced cord .
Replacement for conventional rubber V-belts , but more wear-resisting and can welding.
Products introduction
In addition , We are able to tailor Round and V-belts of different lengths and diameters - within a few
days and with high quality.
