PU round drive belts smooth for Transmission , High stretch

চীন Wuxi Jiunai Polyurethane Products Co., Ltd সার্টিফিকেশন
চীন Wuxi Jiunai Polyurethane Products Co., Ltd সার্টিফিকেশন
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

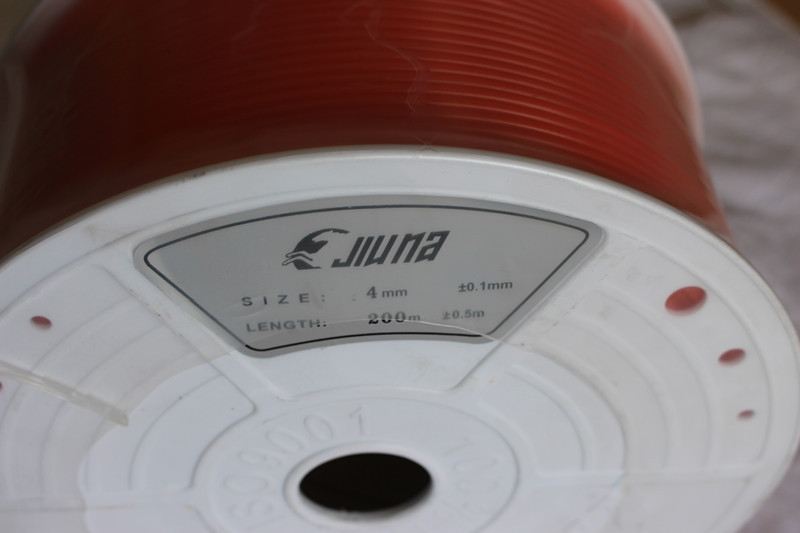

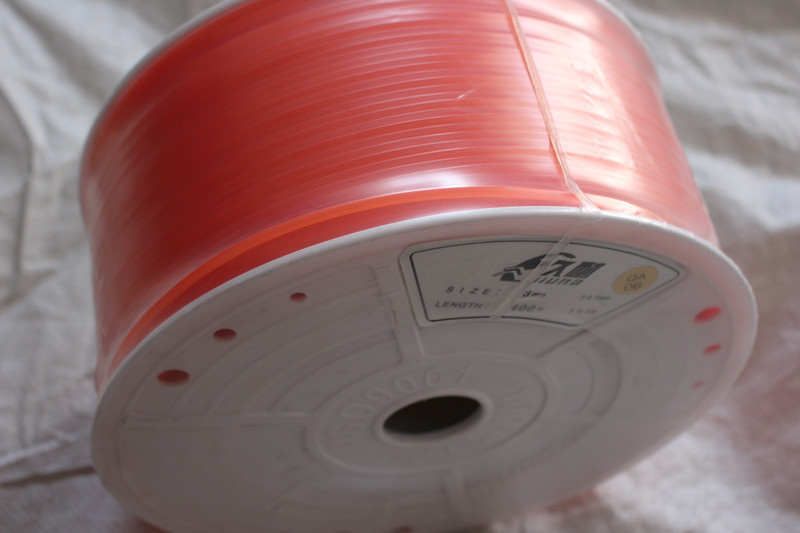

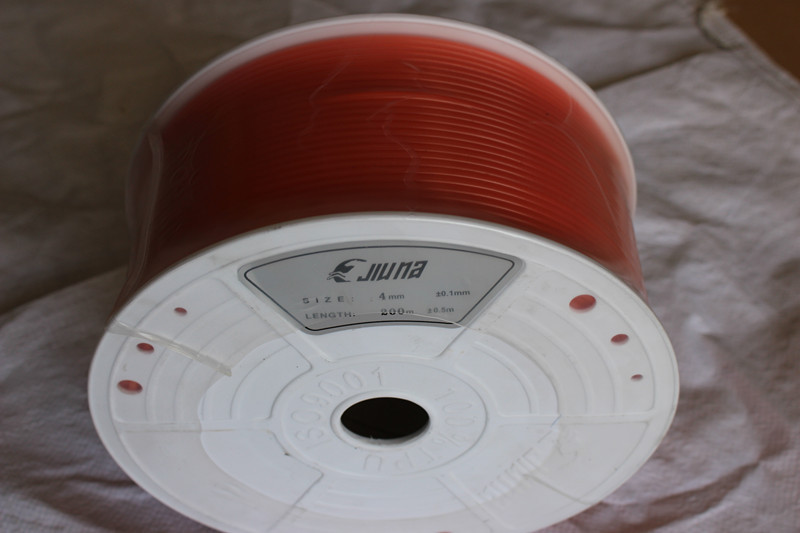

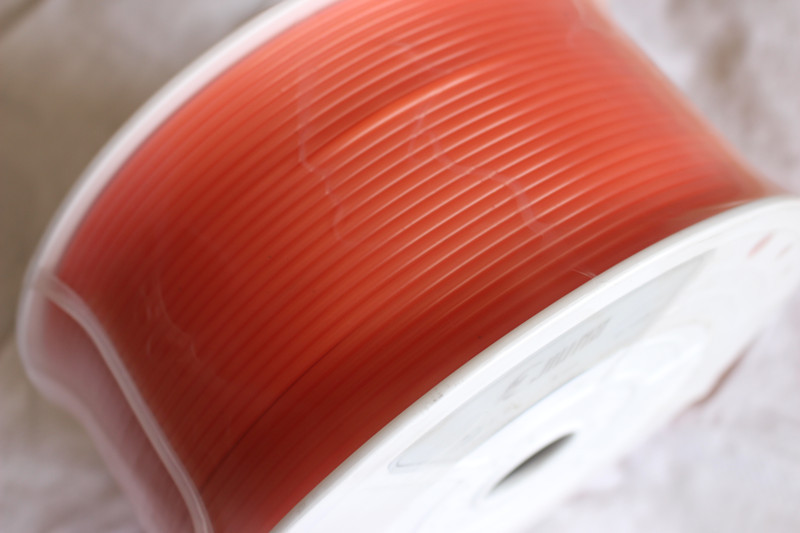

PU round drive belts smooth for Transmission , High stretch

PU round drive belts smooth for Transmission , High stretch
PU round drive belts smooth for Transmission , High stretch PU round drive belts smooth for Transmission , High stretch PU round drive belts smooth for Transmission , High stretch PU round drive belts smooth for Transmission , High stretch

বড় ইমেজ :  PU round drive belts smooth for Transmission , High stretch

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: jiuna
সাক্ষ্যদান: ROHS
Model Number: Diameter 3mm~20mm
প্রদান:
Minimum Order Quantity: 5 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
বিস্তারিত পণ্যের বর্ণনা
color: orange material: PU
longth: 300m/roll 200m/roll 100m/roll 50m/roll 30m/roll hardness: 85A-90A
tensile rate: 0.3kg-31.3kg Type: round belt
লক্ষণীয় করা:

pu round belt

,

green round belt

PU round drive belts smooth for Transmission , High stretch
PU Cord Belt Application :
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Transmission PU Rough Round Belt ; Polyurethane Round Belt, PU Smooth Round Belt, PU Rough Round Belt

Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
PU Round belt with reinforcement



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



PU round drive belts smooth for Transmission , High stretch 0PU round drive belts smooth for Transmission , High stretch 1
