Green 85A Rough Polyurethane Round Belt Resistance To Oils, Fuels,And Oxygen

চীন Wuxi Jiunai Polyurethane Products Co., Ltd সার্টিফিকেশন
চীন Wuxi Jiunai Polyurethane Products Co., Ltd সার্টিফিকেশন
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

Green 85A Rough Polyurethane Round Belt Resistance To Oils, Fuels,And Oxygen

Green  85A  Rough  Polyurethane Round Belt  Resistance To Oils, Fuels,And Oxygen
Green  85A  Rough  Polyurethane Round Belt  Resistance To Oils, Fuels,And Oxygen Green  85A  Rough  Polyurethane Round Belt  Resistance To Oils, Fuels,And Oxygen Green  85A  Rough  Polyurethane Round Belt  Resistance To Oils, Fuels,And Oxygen Green  85A  Rough  Polyurethane Round Belt  Resistance To Oils, Fuels,And Oxygen

বড় ইমেজ :  Green 85A Rough Polyurethane Round Belt Resistance To Oils, Fuels,And Oxygen

পণ্যের বিবরণ:
Place of Origin: china
পরিচিতিমুলক নাম: jiuna
সাক্ষ্যদান: ROHS
Model Number: Diameter 3mm-20mm
প্রদান:
Minimum Order Quantity: 10 rolls

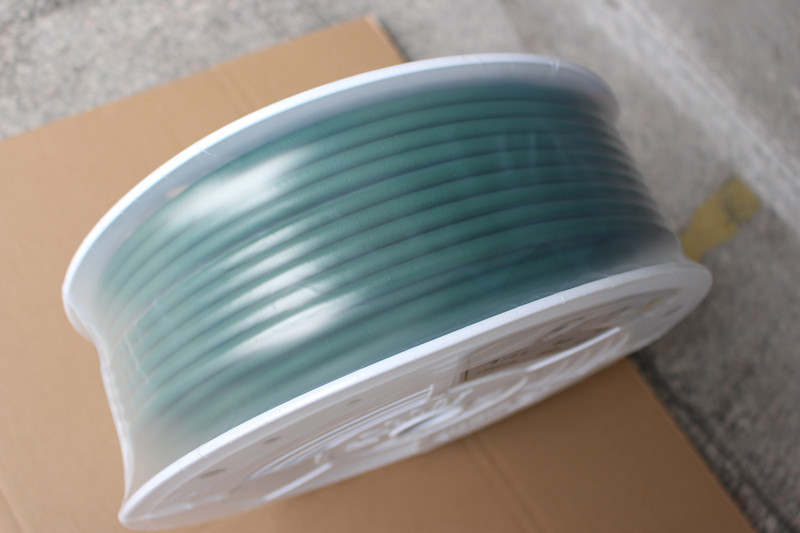

Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
বিস্তারিত পণ্যের বর্ণনা
hardness: 85A color: Dark Green
type: PU round belt surface: rough
material: PU length: 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll
লক্ষণীয় করা:

pu round belt

,

green round belt

Rough Surface Polyurethane Round Belt Green Packing Machine



(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm

Products introduction:

Urethane round belts are elastomeric belts for power transmission application.

Having most metric sizes (2mm to 20mm) and standard O-ring sizes.

Polyether and Polyurethane round belts have best resilience of any elastic material.

Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



Service commitment:

“Quality for keeping going ,Credit to win the world”
