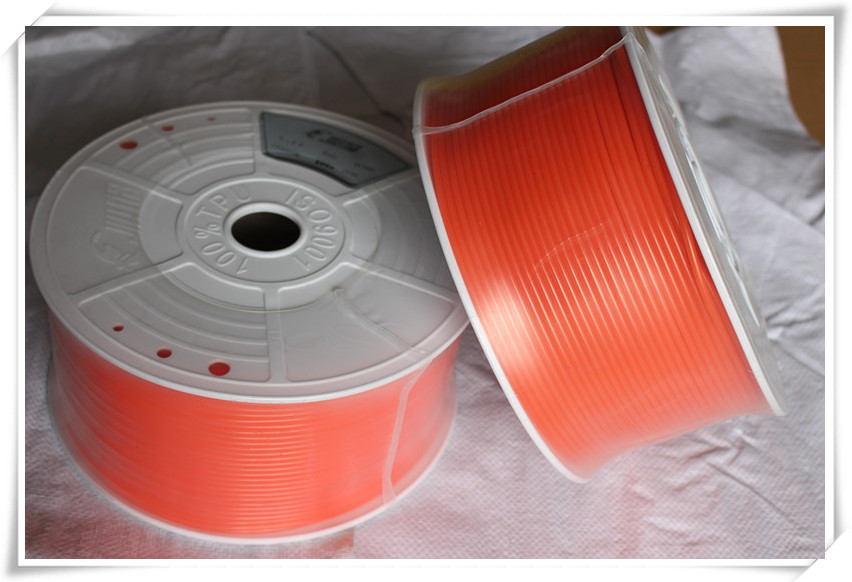

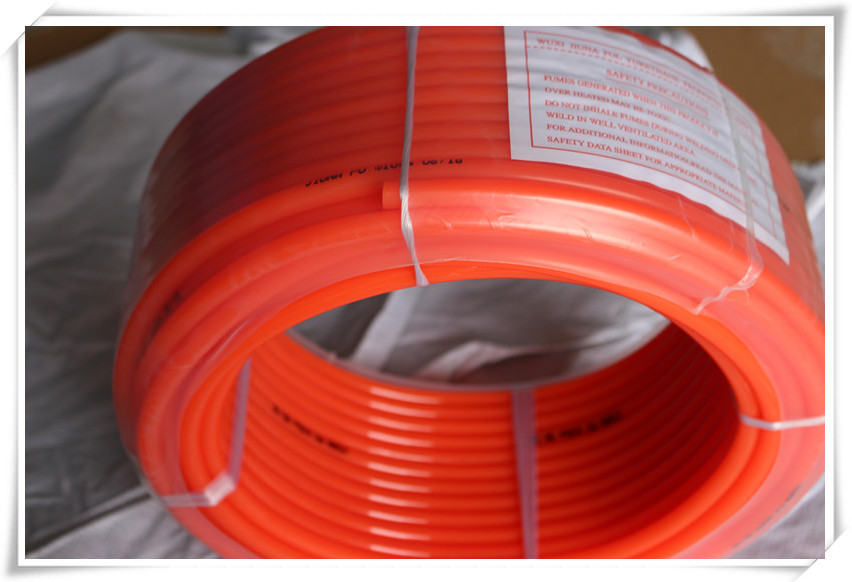

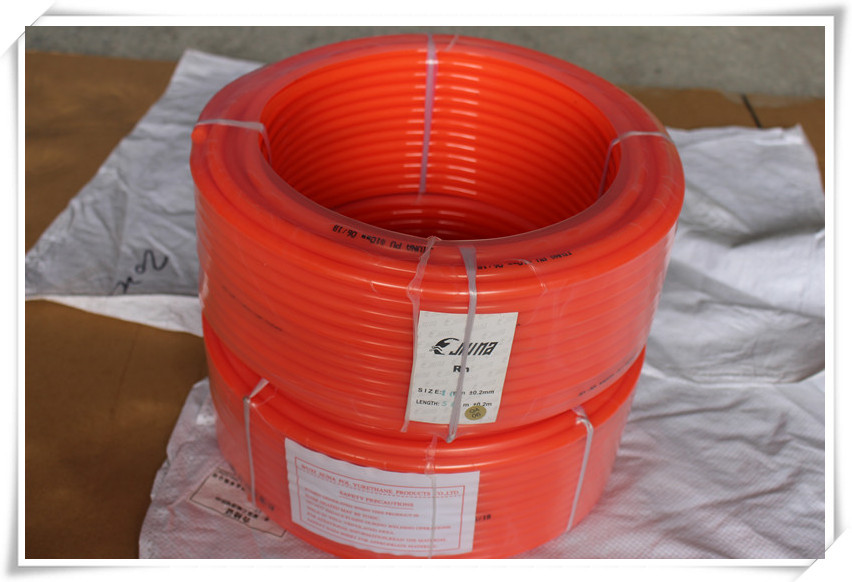

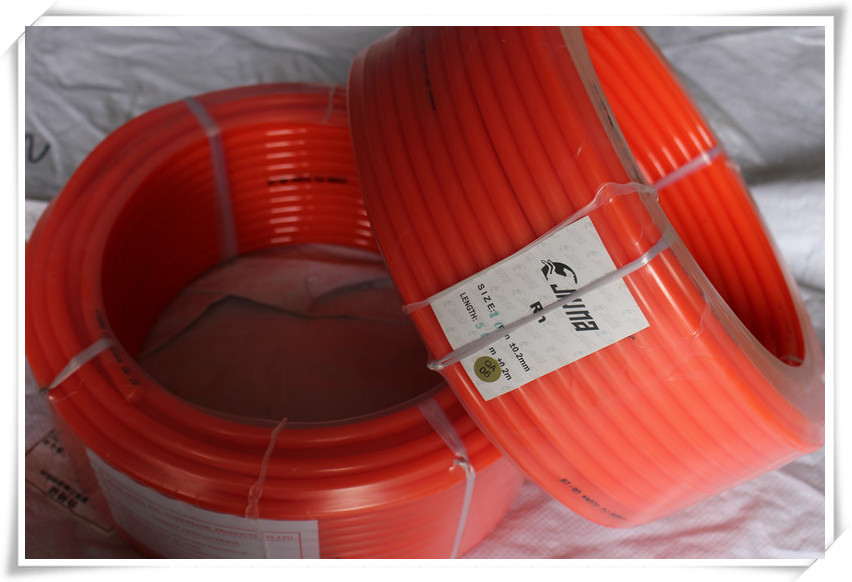

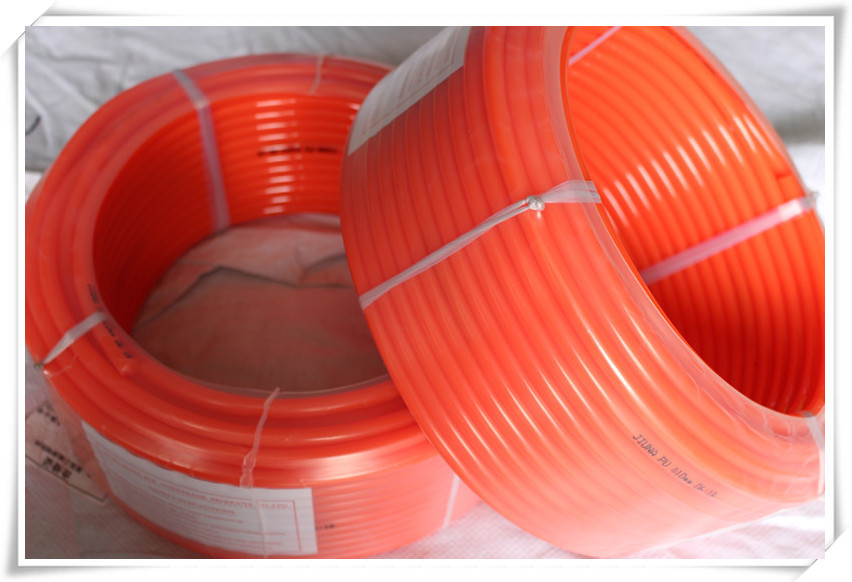

Smooth Round Urethane Round Belting wear-resistance or Ceramic

Smooth Round Urethane Round Belting wear-resistance or Ceramic
Smooth Round Urethane Round Belting wear-resistance or Ceramic Smooth Round Urethane Round Belting wear-resistance or Ceramic Smooth Round Urethane Round Belting wear-resistance or Ceramic Smooth Round Urethane Round Belting wear-resistance or Ceramic Smooth Round Urethane Round Belting wear-resistance or Ceramic

বড় ইমেজ :  Smooth Round Urethane Round Belting wear-resistance or Ceramic

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Jiuna
সাক্ষ্যদান: ROHS
Model Number: Diameter 3 ~20 mm
প্রদান:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 7 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 96.000 meters per Month
Factory: wuxi city
Export port: shanghai port
বিস্তারিত পণ্যের বর্ণনা
material: PU ,TPU type: PU round belt
surface: smooth Model NO: Dia. 2mm to 30mm
Hardness: 90A Export Markets: Global
লক্ষণীয় করা:

pu extruded belt

,

green round belt

Smooth Round Urethane Round Belting wear-resistance or Ceramic
Product Description :


PU Round Belt(smooth/rough)
(1)Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35 degree - 80 degree
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6) Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.

Polyurethane belting of introduction:

Special color round belt can be custom-made ,
Yellow and blue pearl round belt applied to sports leisure fitness industrial like skipping rope.
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.Polyester product


Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



Service commitment:
“Quality for keeping going ,Credit to win the world”
Smooth Round Urethane Round Belting wear-resistance or Ceramic 0Smooth Round Urethane Round Belting wear-resistance or Ceramic 1
