Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness

Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness
Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness

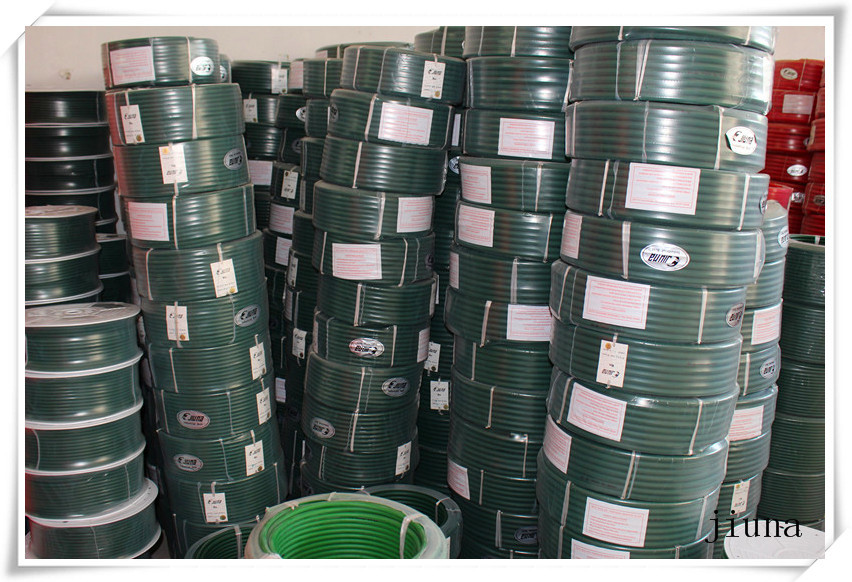

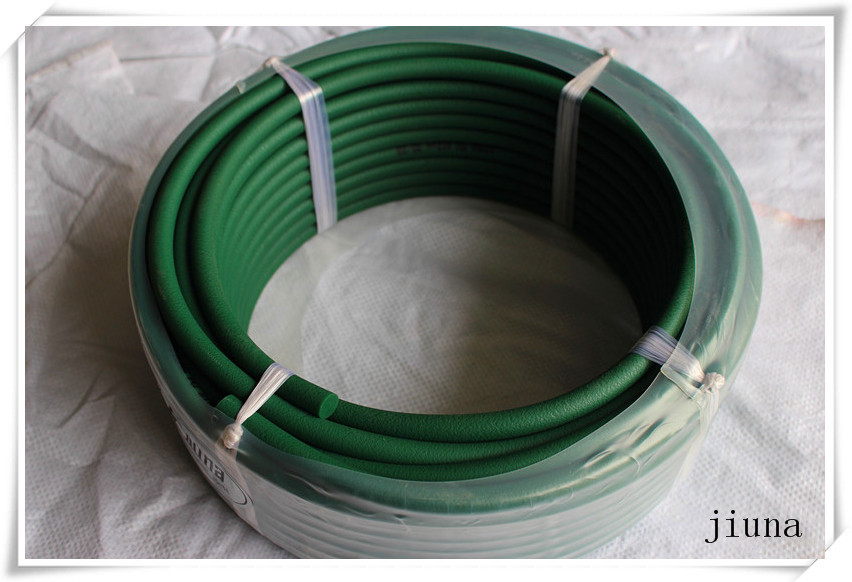

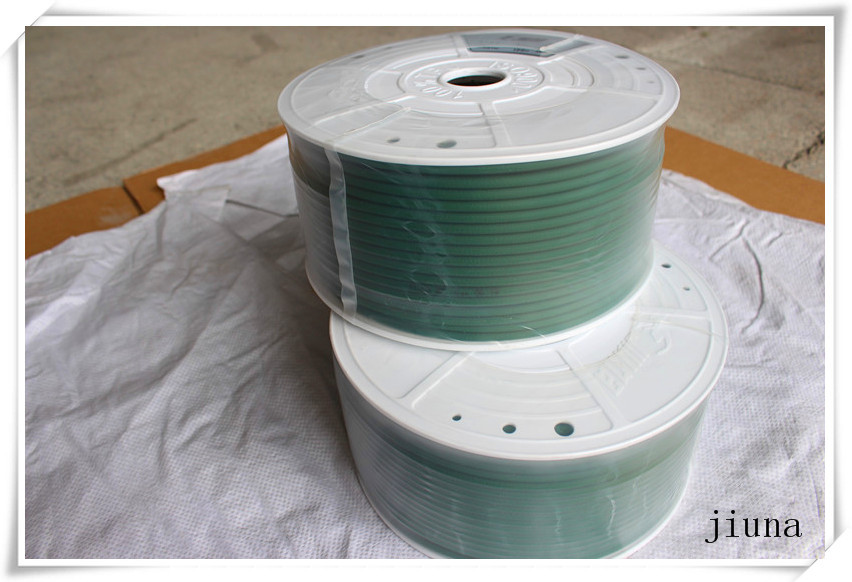

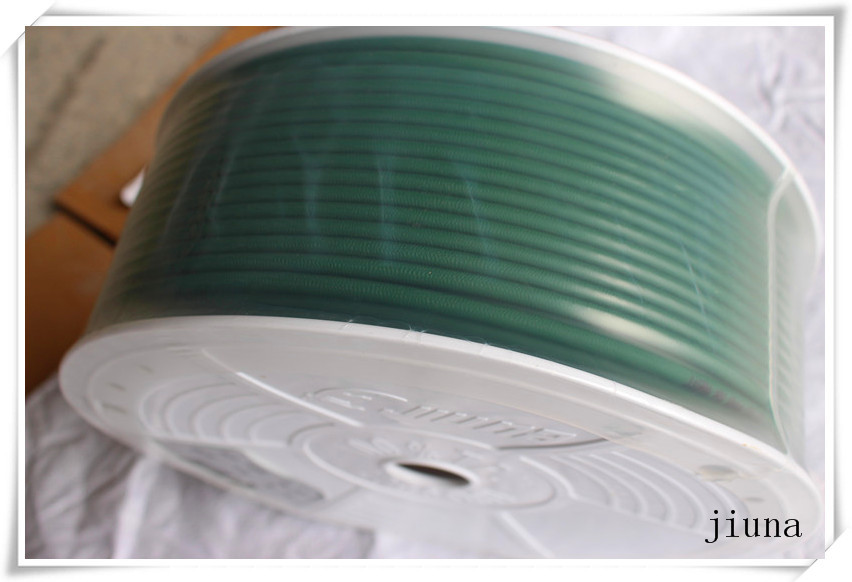

বড় ইমেজ :  Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness

পণ্যের বিবরণ:
Place of Origin: china
পরিচিতিমুলক নাম: jiuna
সাক্ষ্যদান: ROHS
Model Number: Diameter 2mm-20mm
প্রদান:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
বিস্তারিত পণ্যের বর্ণনা
hardness: 85A color: green
heat-resistant: -30℃~80℃ Type: PU round belt
material: PU Surface: rough
লক্ষণীয় করা:

pu round belt

,

green round belt

Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness
PU Round Belt(smooth/rough)
(1) Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 degree - 80 degree
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)  Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.
Service commitment:



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30
