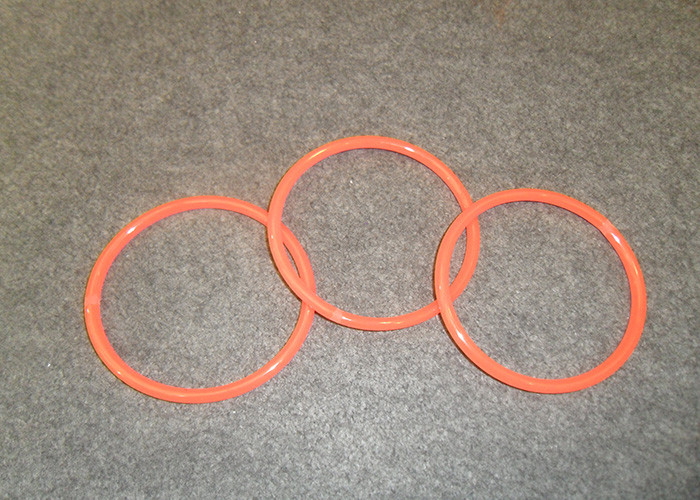

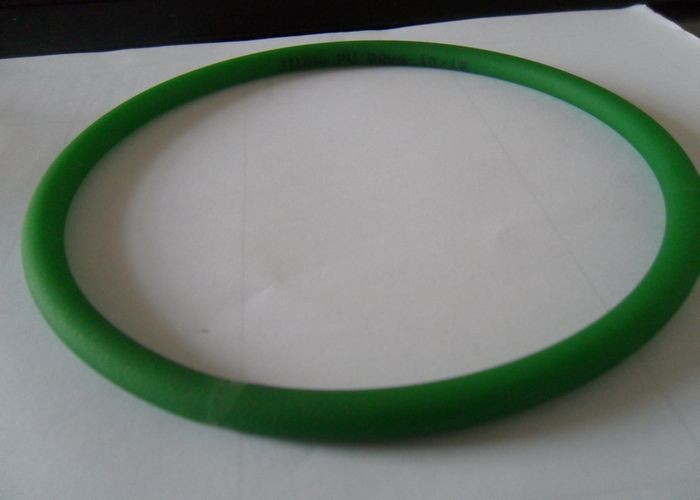

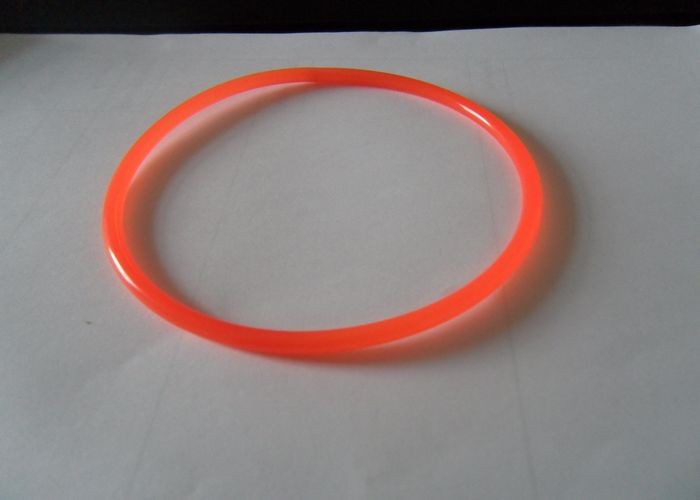

Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm
PU O-ring Feature :
1. High tensile strength
2. Excellent abrasion resistance
3. Good resistance to fuel , oils and oxygen ,
4. It’s not easy to be broken at low temperature .
PU Jointless O-ring Application :
1. Used in sealing industrial for O-ring
2. printing and packing machine ,
3. food & beverage processing,
4. wood processing ,
5. paper processing ,
6. electronic ,
7. post service ,
8. tobacco transmission line ,
9. Wall floor tile conveying industrial line ,
10.ceramic industry line or polishing line .
Rough Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed.
(2)Reinforced by Polyester Cord or Steel Cord.
(3)Temperature range -35 celsius degree - 80celsius degree.
(4)Shore A hardness range 80A - 98A.
(5)With excellent resistance to flex, abrasion resistance, easy jointed and Other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
(7)V-belt Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance.
|
Items NO.Φ
|
Least radius of gyration
|
Stretching rate
|
Maximum tensile rate
|
Hardness
|
Length of rolled
|
|
DIA(mm)
|
In
|
mm
|
%
|
Kg
|
Lbs
|
Shore( A)
|
Length of rolled
|
|
2mm
|
0.79
|
20
|
1.5-3%
|
0.3
|
0.7
|
95
|
400
|
|
2.5mm
|
0.87
|
22
|
1.5-3%
|
0.4
|
0.9
|
95
|
400
|
|
3mm
|
0.98
|
25
|
1.5-3%
|
0.7
|
1.6
|
90
|
400
|
|
3.5mm
|
1.18
|
30
|
1.5-3%
|
0.95
|
2.1
|
90
|
400
|
|
4mm
|
1.38
|
35
|
1.5-3%
|
1.2
|
2.7
|
90
|
200
|
|
5mm
|
1.57
|
40
|
1.5-3%
|
2.0
|
4.3
|
90
|
100
|
|
6mm
|
1.97
|
50
|
1.5-3%
|
3.2
|
7.0
|
90
|
100
|
|
7mm
|
2.17
|
55
|
1.5-3%
|
4.1
|
9.0
|
90
|
100
|
|
8mm
|
2.56
|
65
|
1.5-3%
|
5.0
|
11.0
|
90
|
100
|
|
9mm
|
2.95
|
75
|
1.5-3%
|
6.8
|
15.0
|
90
|
50
|
|
10mm
|
2.95
|
75
|
1.5-3%
|
7.7
|
17.0
|
90
|
50
|
|
12mm
|
3.94
|
100
|
1.5-3%
|
12.2
|
27.0
|
90
|
30
|
|
15mm
|
4.72
|
120
|
1.5-3%
|
17.7
|
39.0
|
90
|
30
|
|
18mm
|
5.71
|
145
|
1.5-3%
|
25.4
|
56.0
|
90
|
30
|
|
20mm
|
6.30
|
160
|
1.5-3%
|
31.3
|
69.0
|
90
|
30
|
